How to Repair 2020 Honda Fit Mileage by CG100 Prog III

CG100 Prog III repairs mileage for 2020 Honda Fit S6J3001 perfectly. Only needs to work with a BDM+4 Adapter and follow the wiring diagram in the CG100 software to operate.

STEP 1:

Check car information (car type and car year)

Obtained the car information from the VIN, and the car type is Honda Fit 2020 S6J3001.

STEP 2:

Record the original mileage KM

The current mileage is 128330KM.

STEP 3:

Remove the dashboard and check chip number.

The Kilometers are stored in the chip: S6J3001S

STEP 4:

Run CG100 software (it’s V6.6.5.0)

Select Dashboard>> Asia car>> Honda>> Fit>> 2020- S6J3001

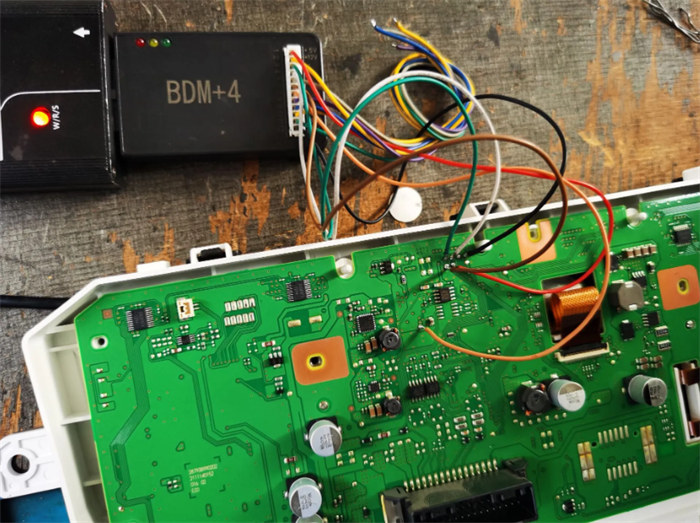

Connect the wires according the diagram

Connect BDM+4 Adapter to S6J3001 dashboard, and connect to CG100 programmer

Click “Start”

STEP 5:

Read the data is the same as the dashboard km show.

STEP 6:

Write the target mileage 19323 KM manually (also can send data to tech support to modify)

STEP 7:

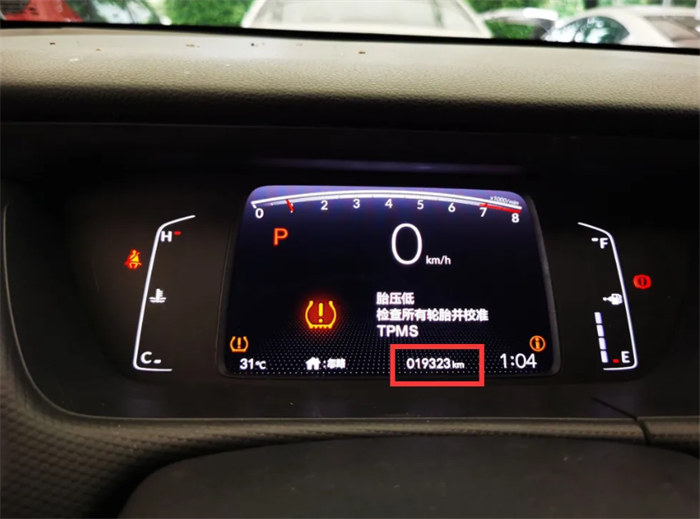

After the KM is modified, install the dashboard back to car and check if the mileage on the dashboard is the same as CG100 software.

All are ok!

CG100 Prog III also repairs mileage for Honda Accord Chip S6J3001 successfully as well.

CG100 Prog III Repair Mileage for Honda Accord Chip S6J3001
